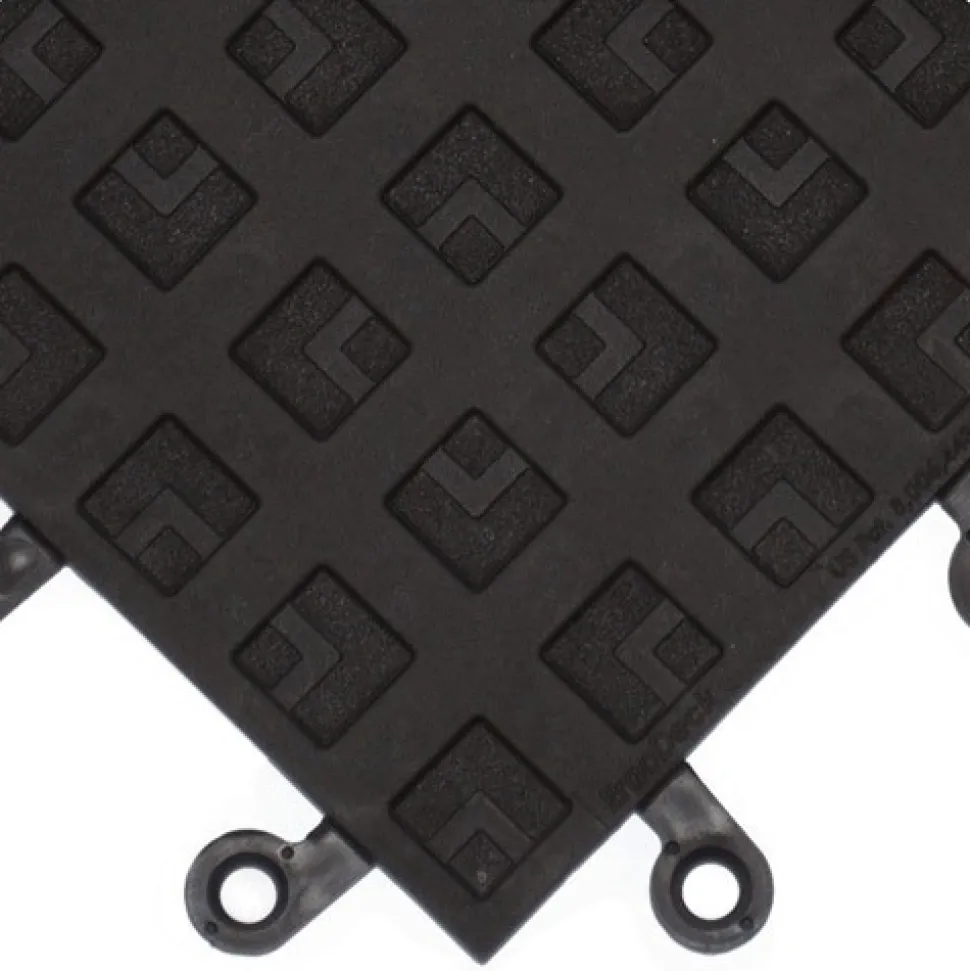

Wearwell ErgoDeck ESD Solid 18×18 Inch Tile Case of 10

1. Standing relief in static sensitive applications
2. Customize in 3” (8 cm) increments to fit any area or configuration
3. Positive Interlocking System prevents separation
4. Use over conductive subflooring
5. Carbon impregnated PVC tiles provide maximum durability
6. Overall thickness 7/8 inch (22 mm)
7. ESD properties are throughout the entire tile
8. Sold by the case of 10 tiles

NOTE: This item is a custom order and is not returnable.

Wearwell ErgoDeck ESD Tiles

Customers who need a type of mat that provides static control in a medical facility, industrial facility, or other use case can count on our Wearwell ErgoDeck ESD Tiles, which carry the highest levels of quality and performance.

Each of our interlocking ESD tiles measures 18 by 18 inches in size. However, you can create any size of coverage on the floor by connecting multiple mats together. Each mat has interlocking tabs on the edges, which simplifies the process of connecting the mats.

Each of these PVC plastic mats has anti-fatigue properties, which allow those who must stand and work for long periods of the day to receive a forgiving type of flooring.

People will have less pain in the lower body joints and in the lower back after standing on these cushioned mats for work. These properties also reduce fatigue in the legs.

Installation of Wearwell ErgoDeck Tiles

The tiles will remain tightly connected, even when placed under stress, because of the positive interlocking system. Installers will not need any glue or adhesive to put the mats together, yet they will remain tightly connected as if the installer did add glue.

Should the installer need to disassemble the tiles later to move them into storage or to create a smaller coverage space, these tiles will pop apart just as quickly as they went together. This is a highly convenient type of floor that offers all of the benefits of PVC plastic flooring, along with ESD properties.

Installation is an easy process. When installing these tiles, customers have the option of creating a wall-to-wall design or an island design. When pushing the flooring against a wall, installers may need to cut some of the tiles to reduce the size of the tile and create a tight fit. Cutting these tiles only requires a utility knife and a straightedge.

For an island design, where the layout will be in the middle of the room, the 7/8-inch lip on the tiles could create a tripping hazard. Customers can add an optional yellow beveled edge to the perimeter to reduce the trip hazard.

This product is made from 80% post-industrial recycled material.

Wearwell ErgoDeck ESD Tile Specifications

• Width: 1.5 feet
• Length: 1.5 feet
• Thickness: 7/8 inch
• Tiles per Case: 10
• Coverage: 22.5 square feet per Case
• Weight: 2.2 pounds per Tile
• Surface: Raised pattern
• Edge: Interlocking
• ESD Rating: EOS/ESD S7.1: 1×10^6 – 1×10^9 (meets ANSI/ESD 20.20 requirements)
• Flammability: MVSS 302 / A Rating
• Taber Abrasion: ASTM D 3884 / 1% Loss
• Temperature Range: 0 to 120 degrees Fahrenheit
• Coefficient of Friction: ASTM F1677 / Dry: COF = .65 / Wet: COF = .42
• Compression Deflection ASTM D575 – 27 psi at 7.5% =.06 distance compressed

Disclaimer

Since July 2023 this product is now sold by the case instead of individual tiles.

ErgoDeck is a registered trademark of Wearwell.

Maintenance

Sweep regularly or dry-mop the surface.

Shipping

Ships in cartons via ground service to your door, for larger orders product may ship freight delivery

WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
